BST S2™ UAS

Modular by Design, Accurate by Nature

black swift technologies
bst s2 uas

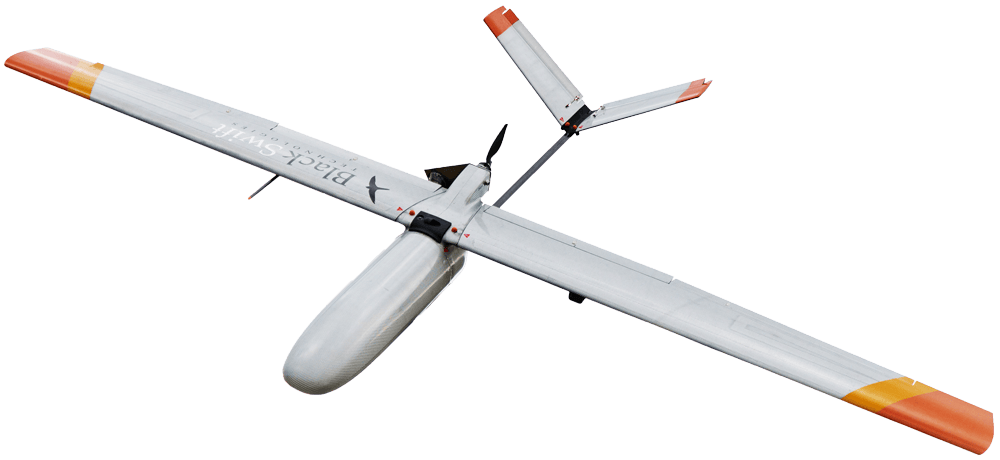

The BlackSwift S2™ is a UAS purpose-built for flying scientific payloads in demanding atmospheric environments (high-altitude, corrosive particulates, and strong turbulence). The BlackSwift S2 offers the additional benefits of having a larger payload capacity than other vehicles while also having longer endurance, higher ceiling, and greater range than vector wing airframes. This rugged airframe is capable of autonomous launch, flight, and landing in difficult mountainous regions.

S2 Specifications

Mission Capabilities

 Ingress Protection (IP) IP42
 Payload Weight vs Launch 1.4 kg (3 lbs) hand launch
2.3 kg (5 lb) rail launch
 Flight Ceiling 6000 m (20,000 ft)
 Max. Winds Endured 15 m/s (30 kts)

Flight Characteristic (6,000 ft density alt)

 Flight Speed 12 m/s (24 kts) stall, 18 m/s (35 kts) cruise
 Flight Time 110 min max, 90 min nominal
 Range 110 km (60 nm) max, 92 km (50 nm) nominal

Vehicle Characteristic

 Weight 5.2 kg (11.5 lbs) nomoinal, 6.6 kg (14.5 lbs) max
 Wingspan 3.0 m (10.0 ft)

Payload Capacities

 Nose Cone Dimensions 20.3 cm (8 in) diameter
63.2 cm (24.9 in ) length
 Power available for payload 50 W total
 Payload weight 2.3 kg (5 lbs) max w/ rail launch
 Geotagging Position Accuracy Typically < 4m in all directions
 Telemetry Data Rate Serial Stream, 9500 bps

“The S2 has very good flight characteristics. It gives us the ability to fly at slower speeds which allow us to fly the airplane in much more confined spaces.”

Ed Dumas
Licensed sUAS Pilot NOAA/ATDD

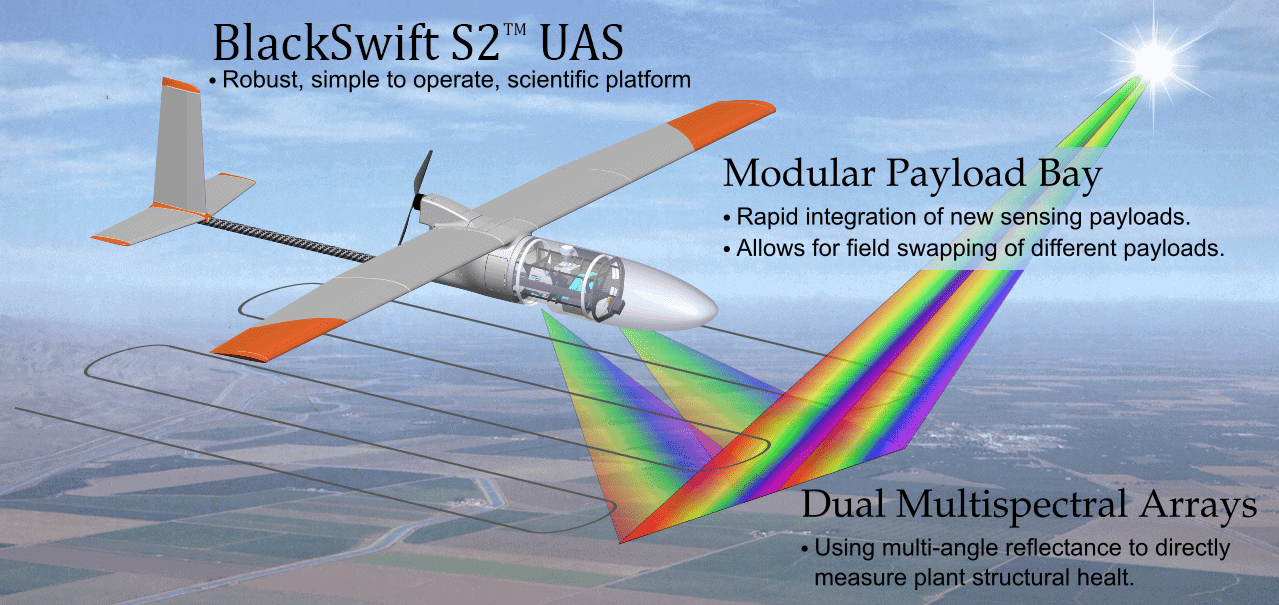

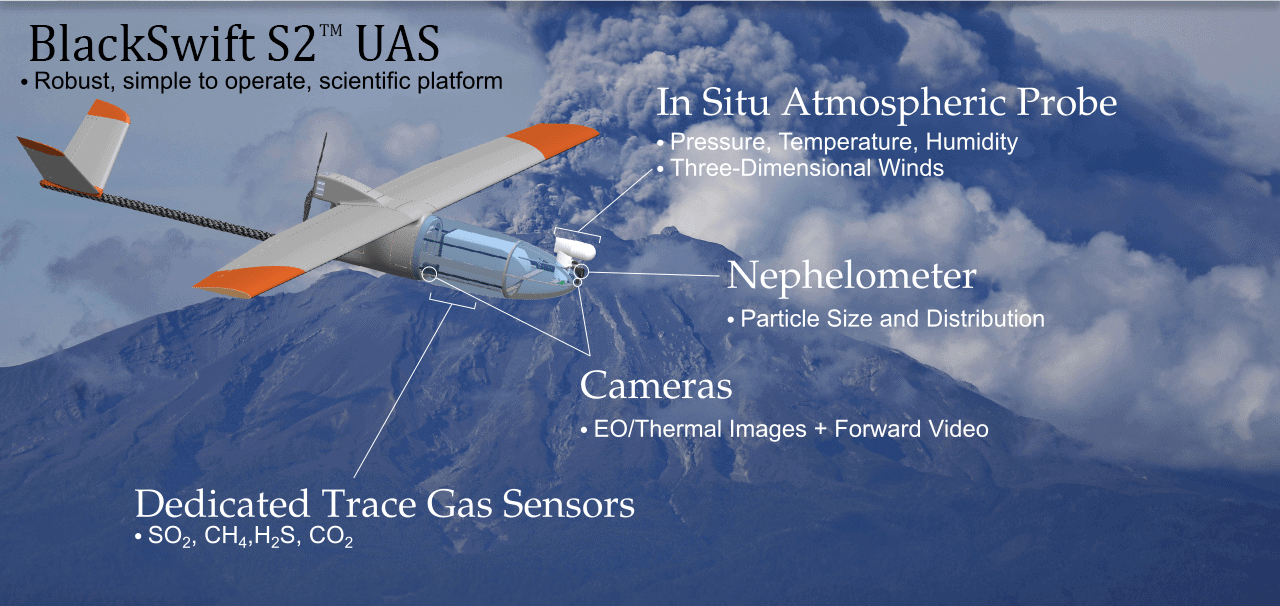

Modular Field-Swappable Payload System

Indicative of its science-based missions and flight heritage, the BlackSwift S2 features the field-swappable payload system designed to:

  1. Ensure clean and uncontaminated measurements of the atmosphere by completely enclosing the sensor suite and associated hardware within the nose cone, and
  2. Enable rapid changes of the payload in the field using a common power, data, and mechanical interface without any specialized tools. This allows for different sensors suites to be rapidly deployed in successive missions using the same airframe and FMS, extending the utility of the BlackSwift S2 to numerous applications and missions outside that of volcanic plume detection.

“NASA and similar scientific agencies require deliverables with a high degree of accuracy and reliability. The BlackSwift S2 is designed to collect data in harsh environments and will enhance the performance and utility of NASA’s Airborne Science fleet.”

Jack Elston, PhD

CEO, Black Swift Technologies

When Time is of the Essence

Leveraging BST’s proprietary Flight Planning User Interface, scientists can program the BlackSwift S2 in minutes to calculate the area under review and then begin collecting data for immediate analysis and decision making. With its intuitive tab-driven interface, flight planning is simple and easy to accomplish. Mission monitoring and mapping is all done from a handheld Android™ Tablet loaded with BST’s SwiftTab™ software. Gesture-based controls enable users to confidently deploy their BlackSwift S2 with minimal training while being able to collect data over geography that is topically diverse with confidence.

The SwiftCore FMS enables advanced control systems. These “smart” control systems provide industry leading sensor-based control of the UAS that minimizes operator workload while improving the quality of the observed data by autonomously modifying the flight path based on sensor inputs.

black swift s2 uas
black swift s2 uas

Take your scientific research to the next level with the Black Swift S2.
